DESCRIPTION

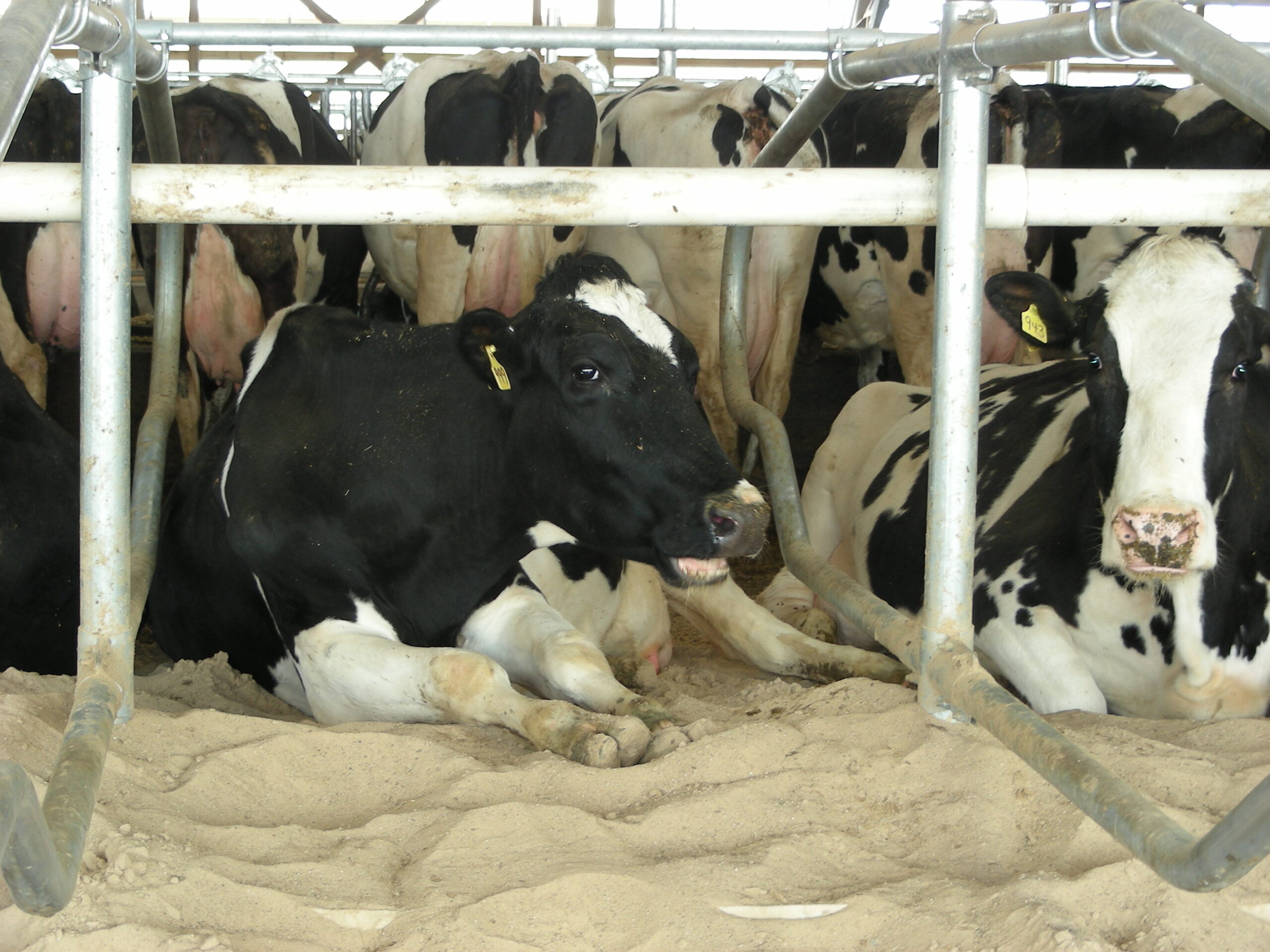

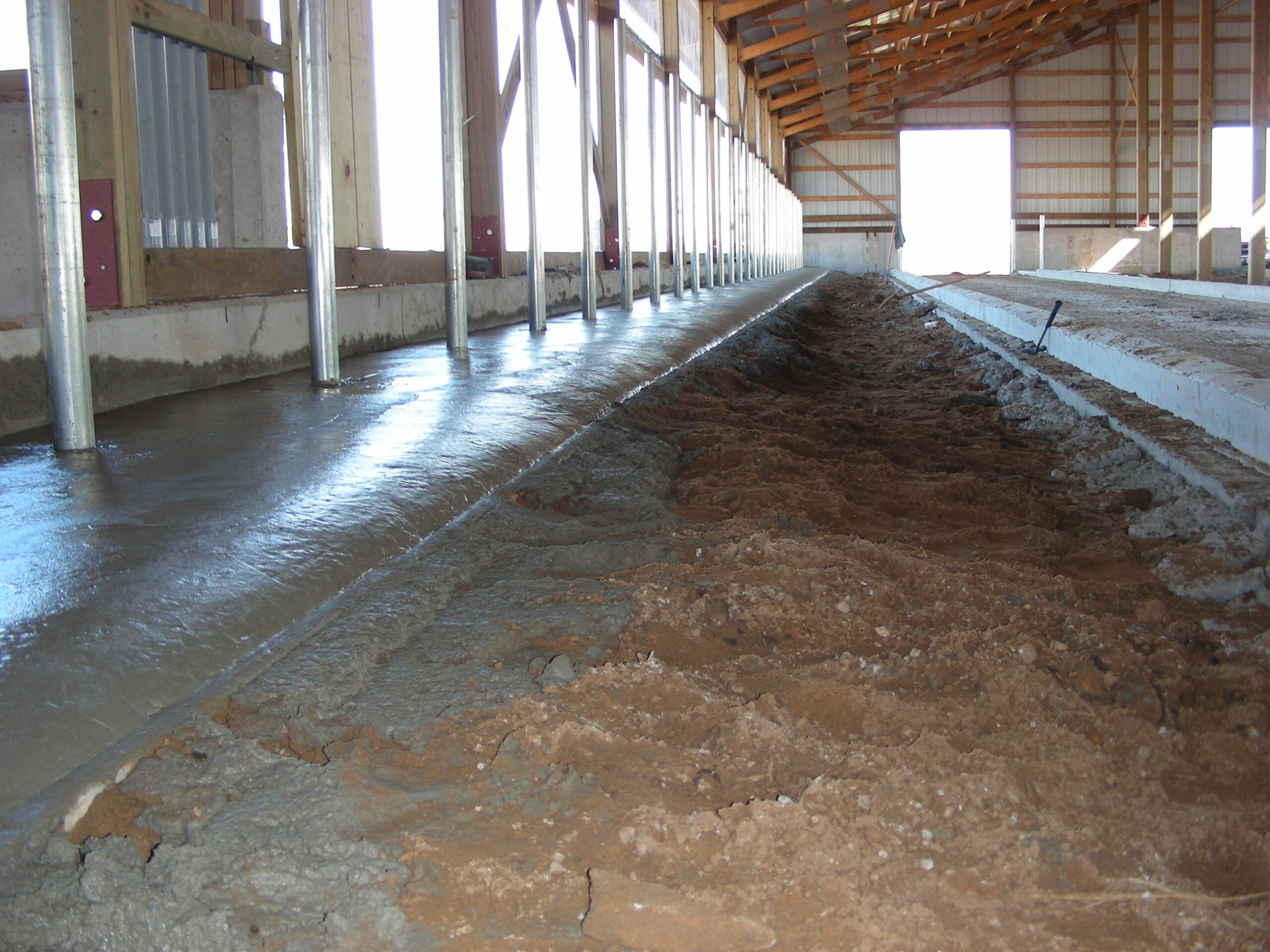

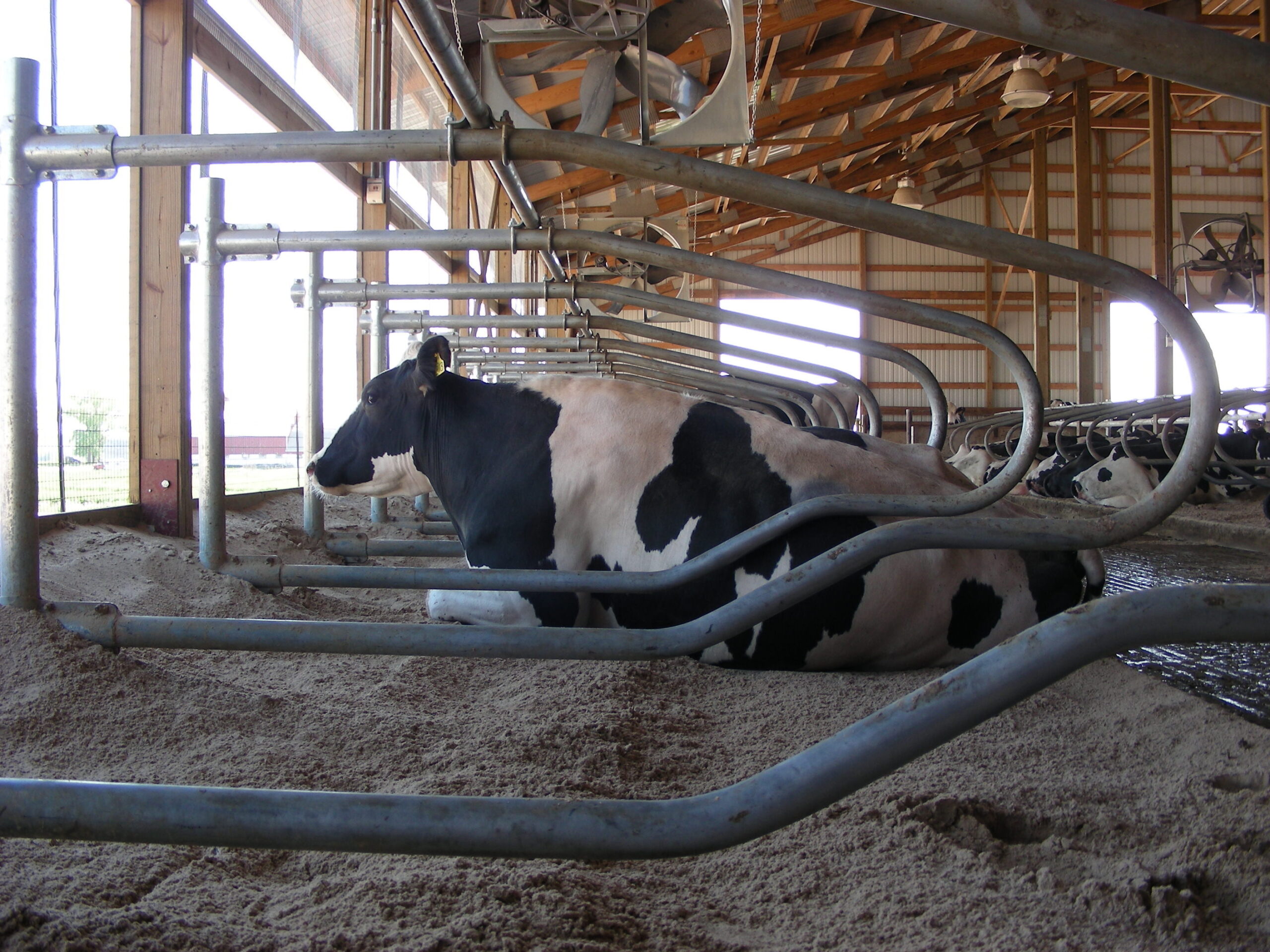

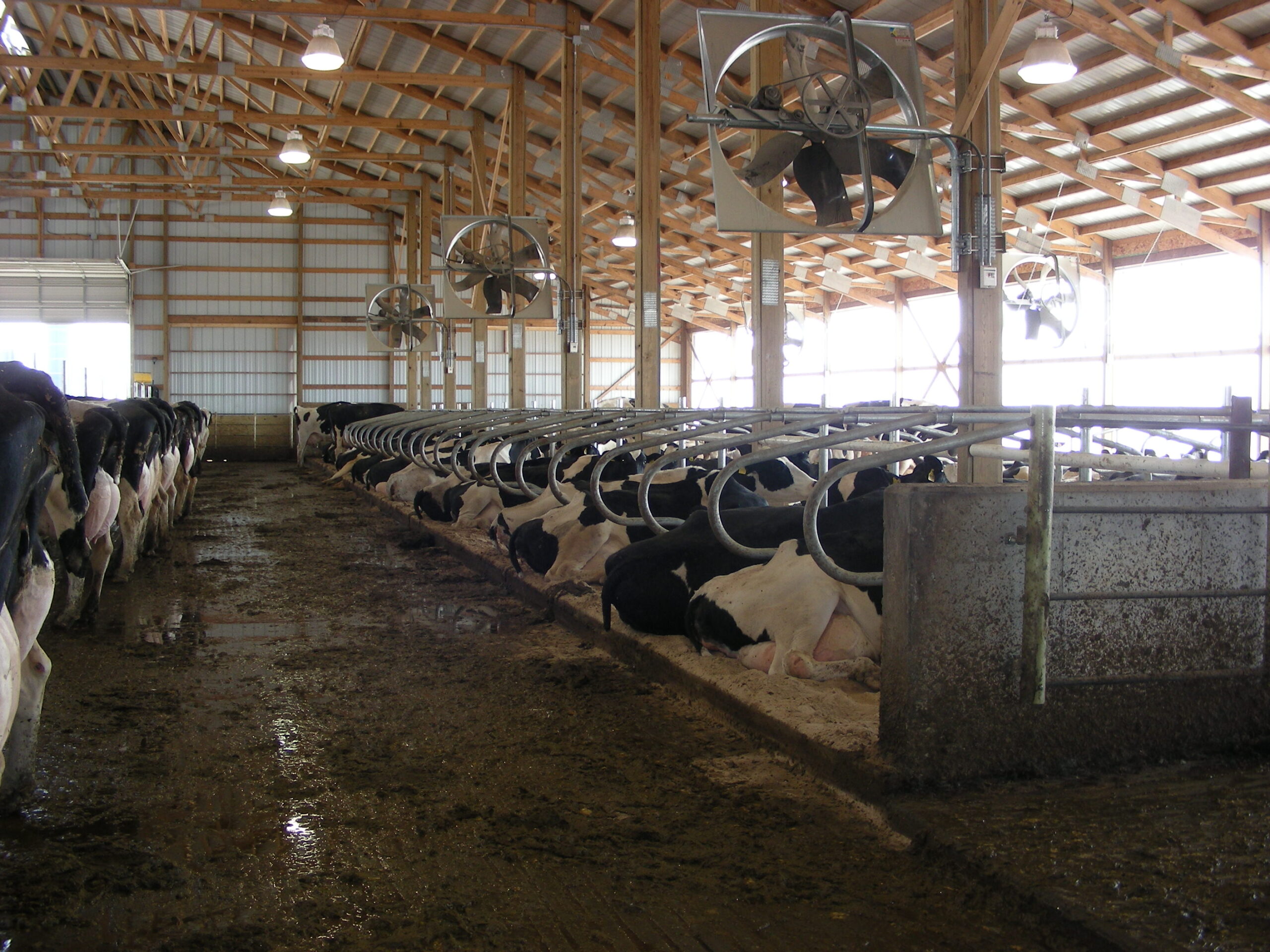

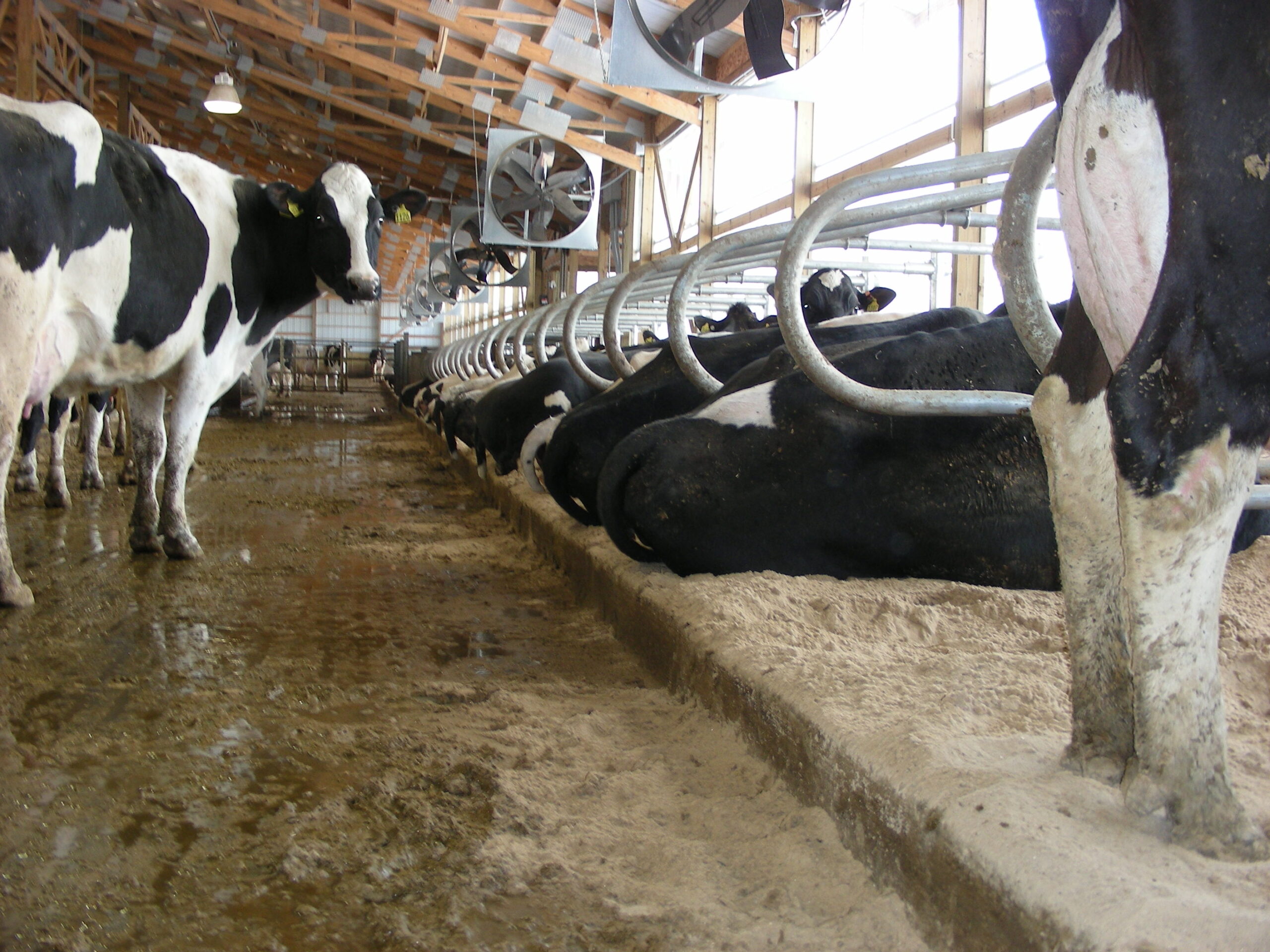

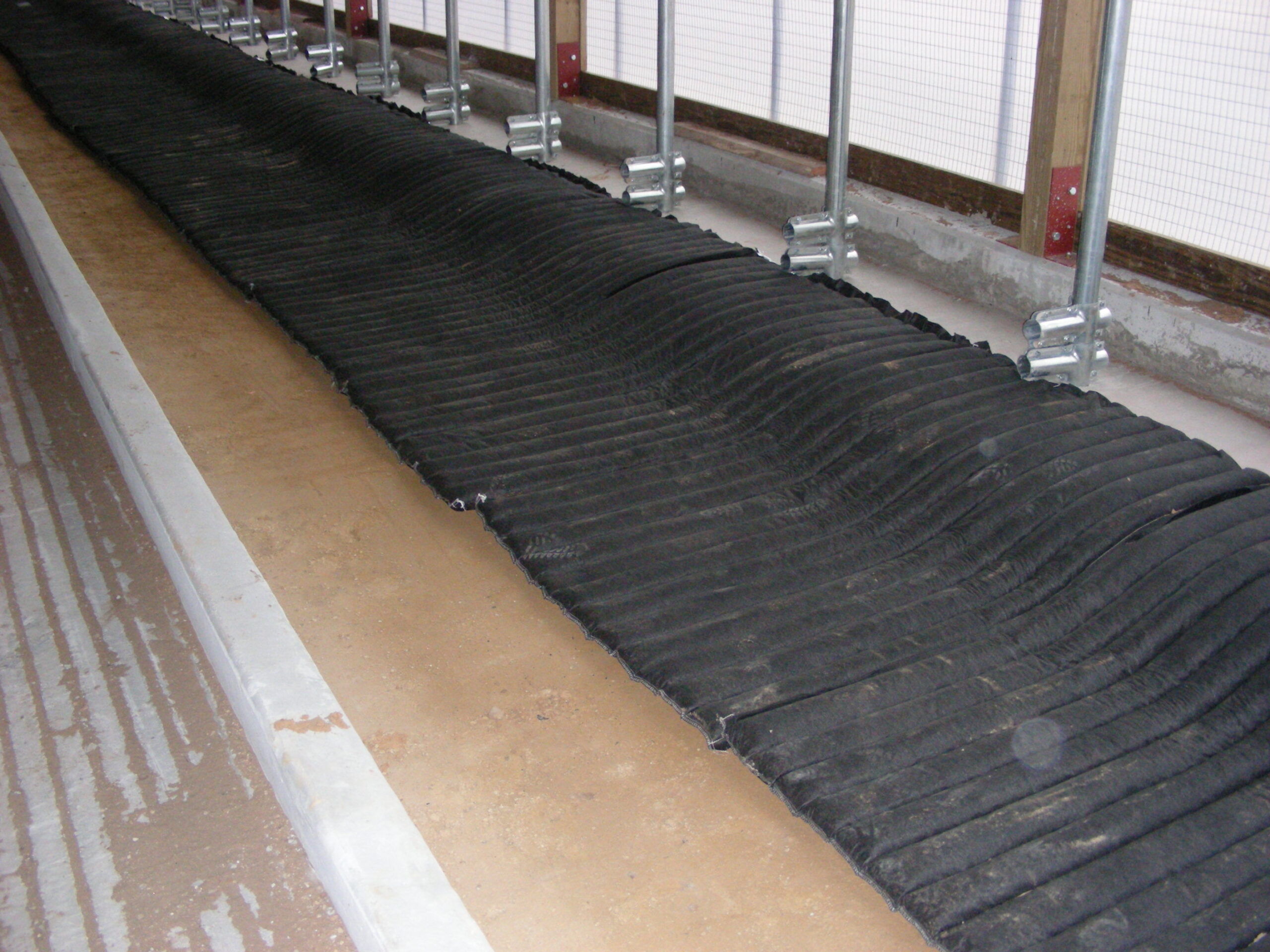

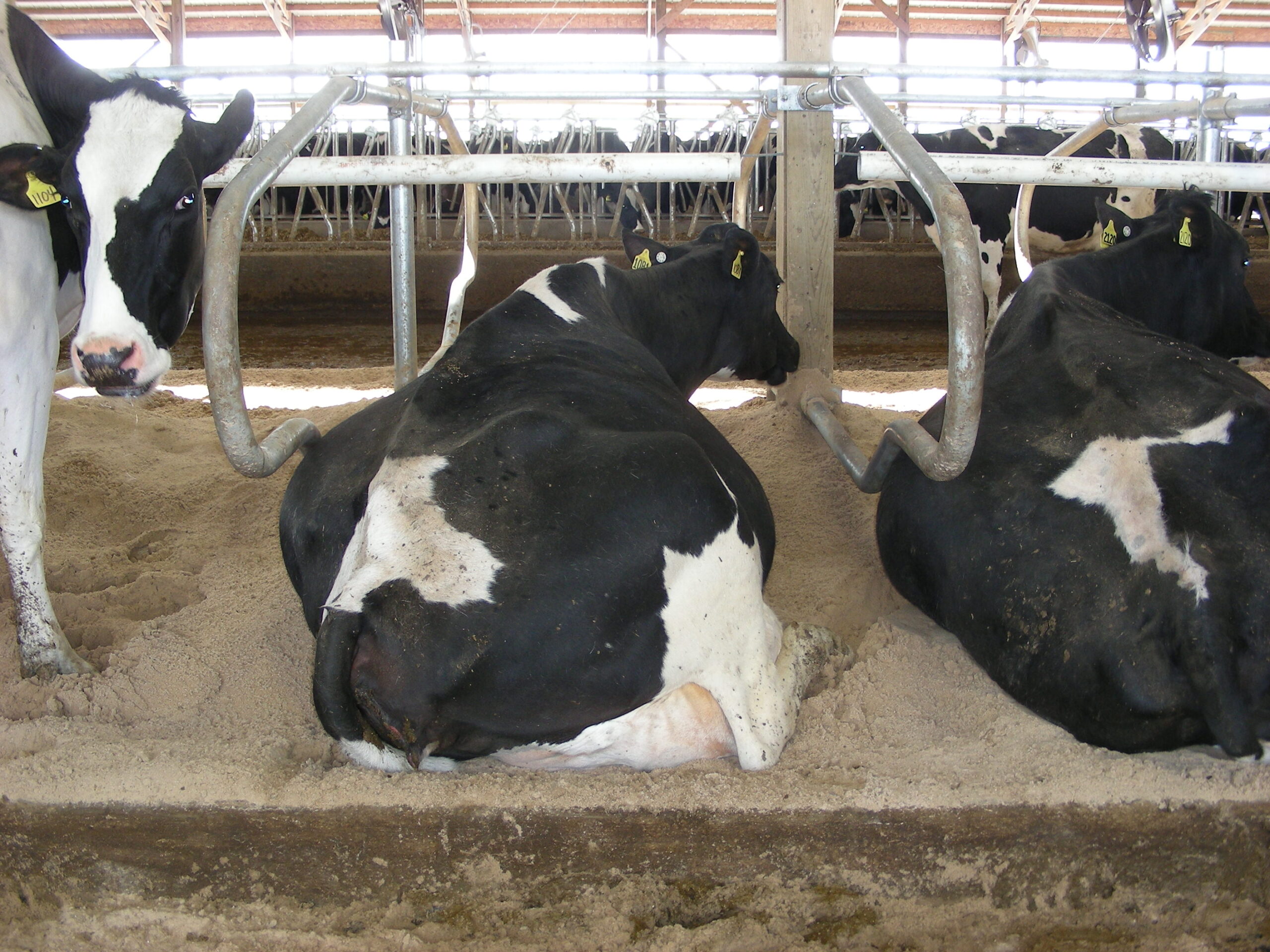

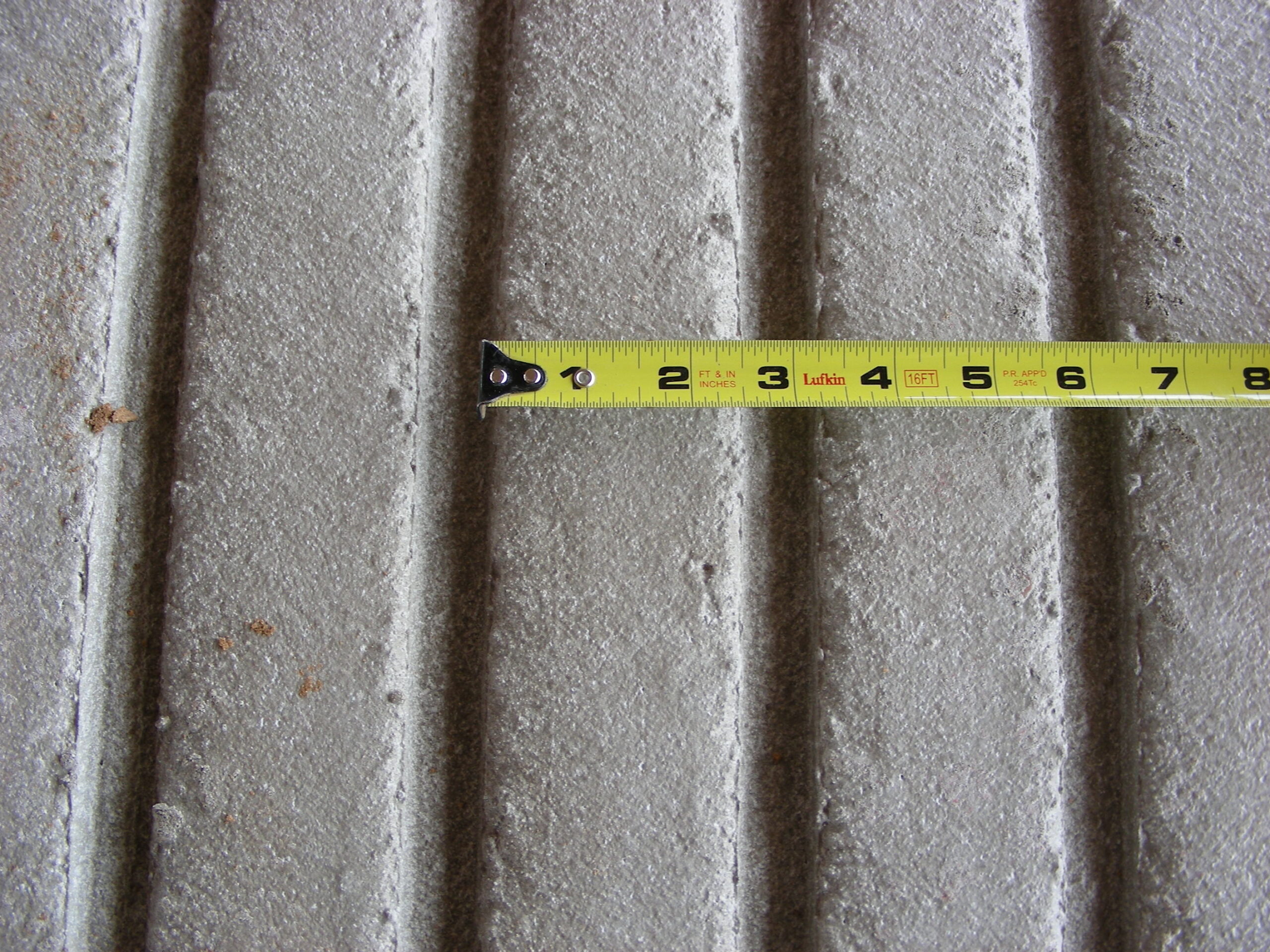

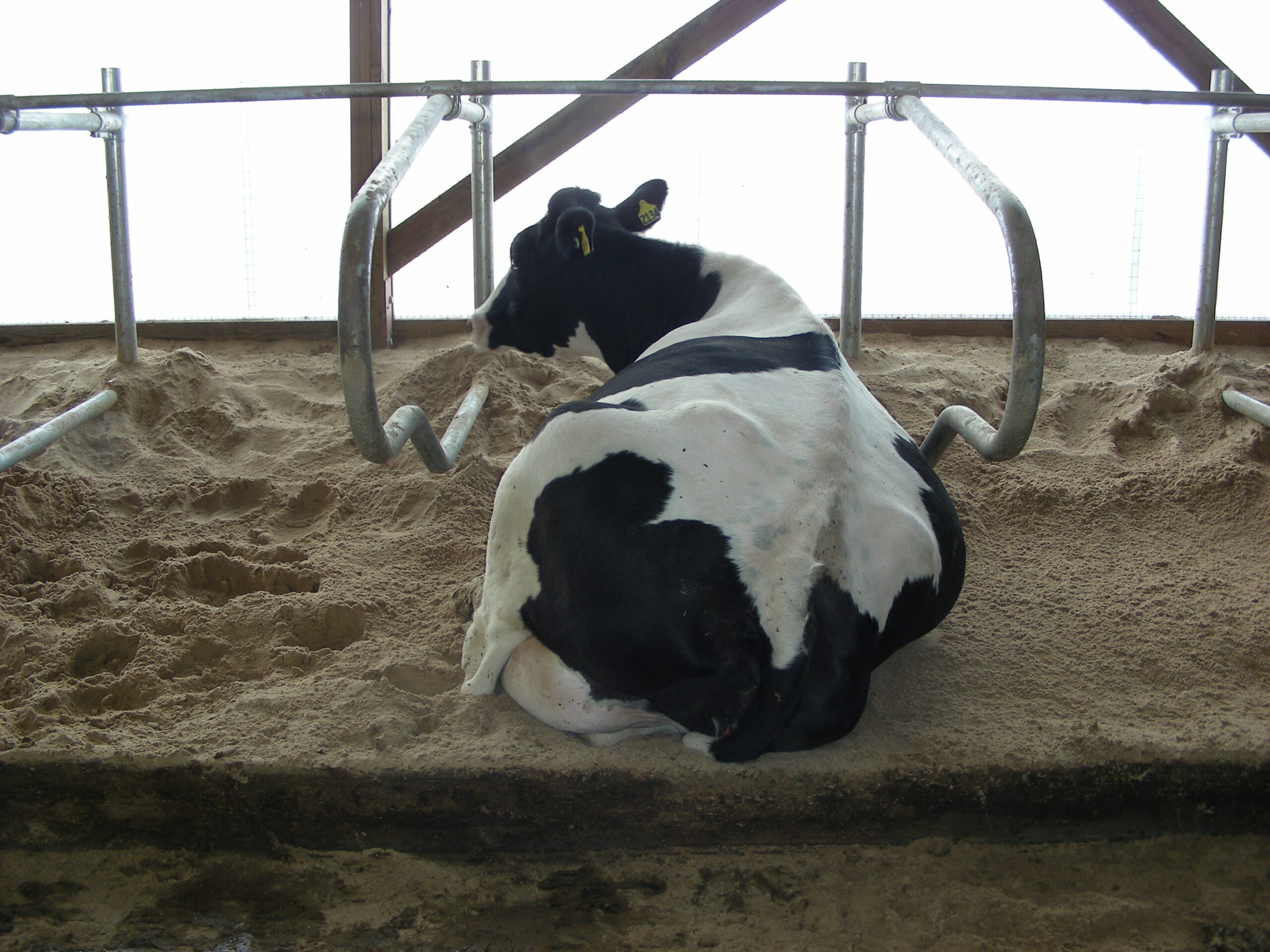

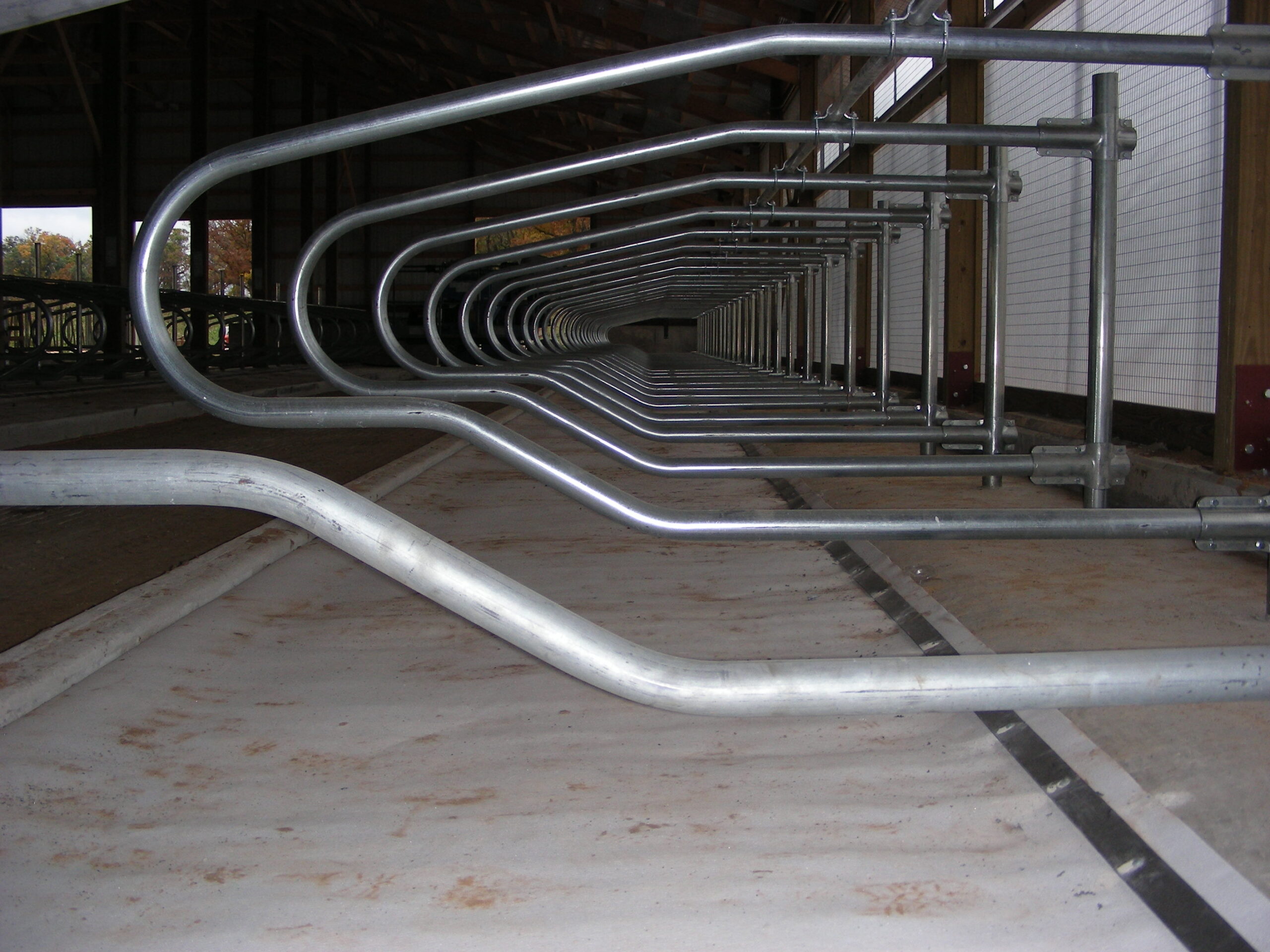

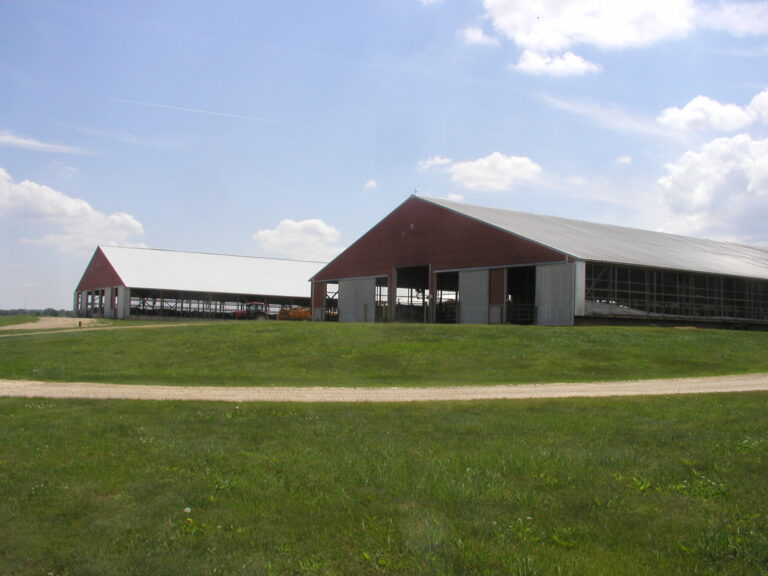

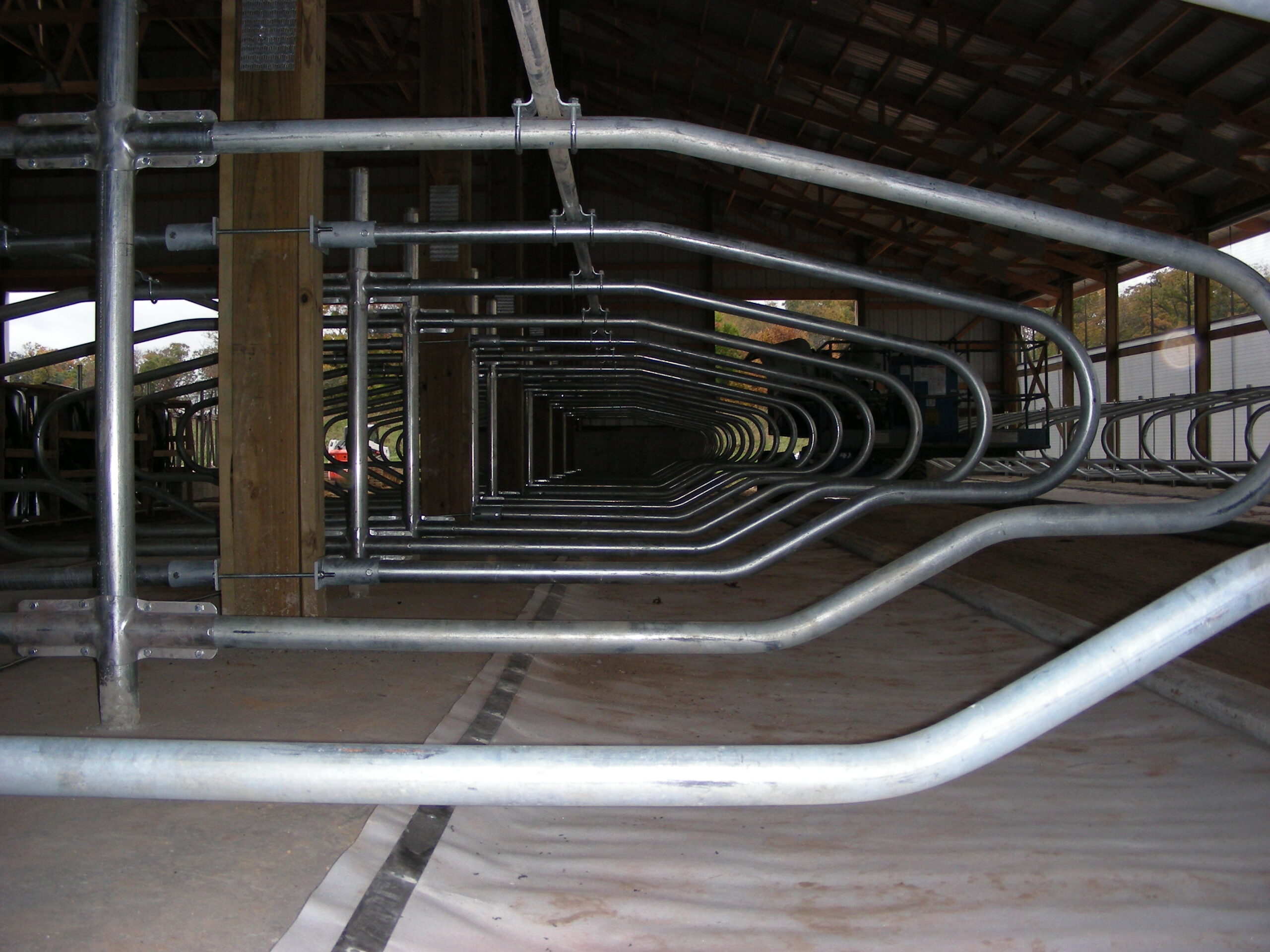

New lactating cow barn addition. 6-row barn with 4 x 3-row pens of 85 stalls each. Stalls 10′ long against the side-wall and 17′ head to head platform, all 50 inches wide. 14′ feed alley and 14′ crossovers. Floor grooving with 0.75 inches wide, 0.5 inches deep groove, 3.25 inches on center. Pack Mat stall base with 2 inches of sand bedding and Artex Y2K divider loops, with a concrete brisket slope.
LAYOUT / FLOORPLAN
PICTURES
VIDEOS
CONSTRUCTION
Cost of Barn Construction, 2009
Excavation
Alme Construction Co.
N8923 County Road D, Belleville, WI 53508
Ph: 608-424-3155
Excavation
Harold’s Excavating
7119 Gehin Drive, Belleville, WI 53508
Ph: 608-424-3481
Building
Wick Buildings
405 Walter Road, Mazomanie, WI 53560
Ph: 800-356-9682
buildings.info@wick-mail.com
Pack-Mat stall base, manure handling system
Field Silo & Equipment
1310 Bus Hwy 18-151, Mt. Horeb, WI 53572
Ph: 608-437-5561
info@fieldsilo.com
Curtains
Meinholz Enterprises
7485 Cty K, Middleton, WI 53562
Ph: 608-836-3255
meinholz.enterprises@hotmail.com
Electrical
Buttchen Electric Inc, 32 Cemetery Road, Evansville, WI 53536
Ph: 608-882-4125
Headlocks
Albers Dairy Equipment
23617 Hwy 21, Tomah, WI 54660
Ph: 608-374-2208
Rubber belting flooring
Gabel Belting
PO Box 35, Route 16, Olean Road Chaffee, NY 14030
Ph: 716-496-6025
gabeltimothy@yahoo.com
Lagoon Concrete
Pipping Concrete
N5888 Center Road, Brandon, WI 53919
Ph: 920-872-2520
info@pippingconcrete.com
LENDER
Investors Community Bank
860 North Rapids Road, PO Box 700, Manitowoc, WI 54221
Ph: 920-686-9998
