DESCRIPTION

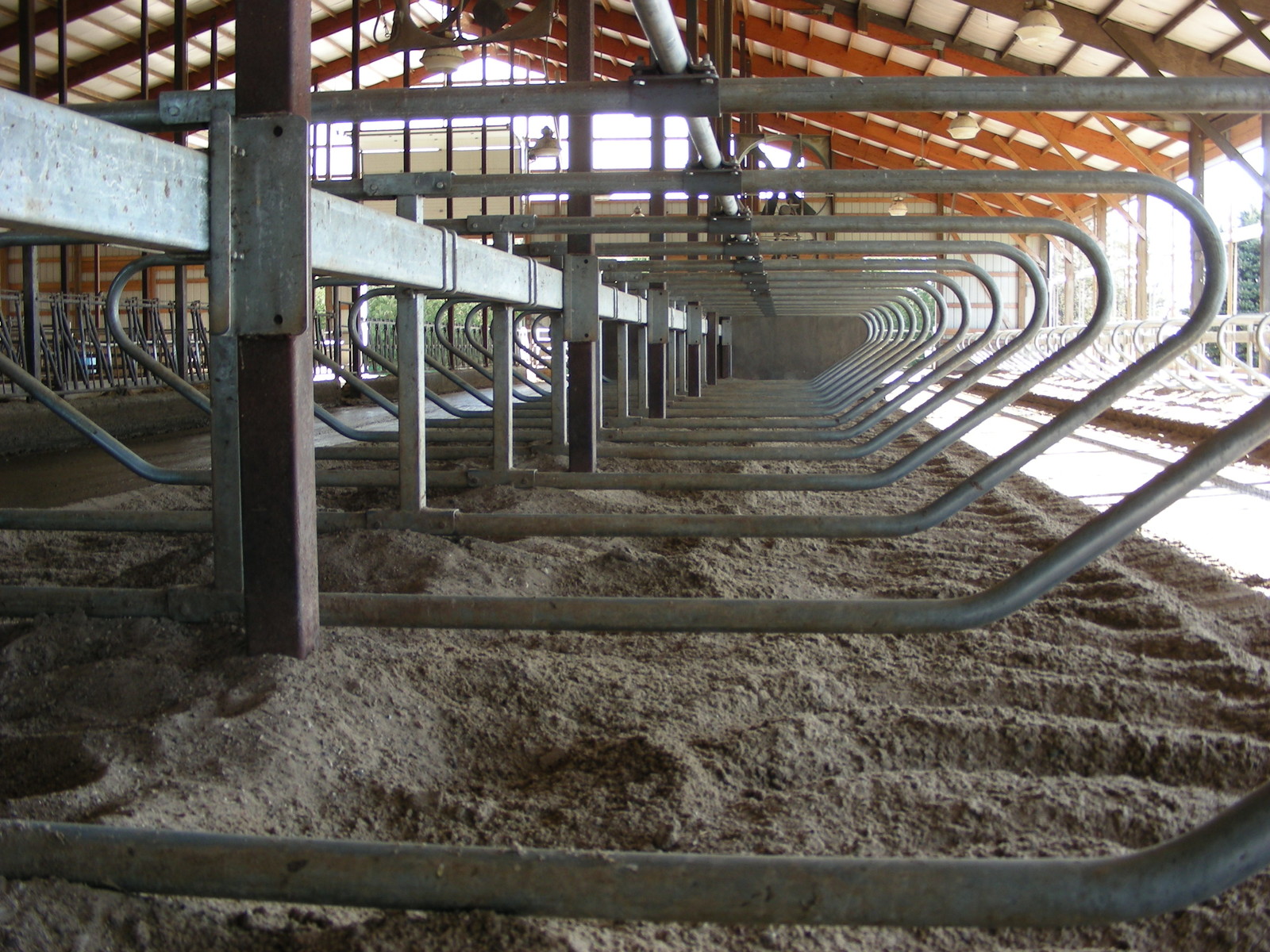

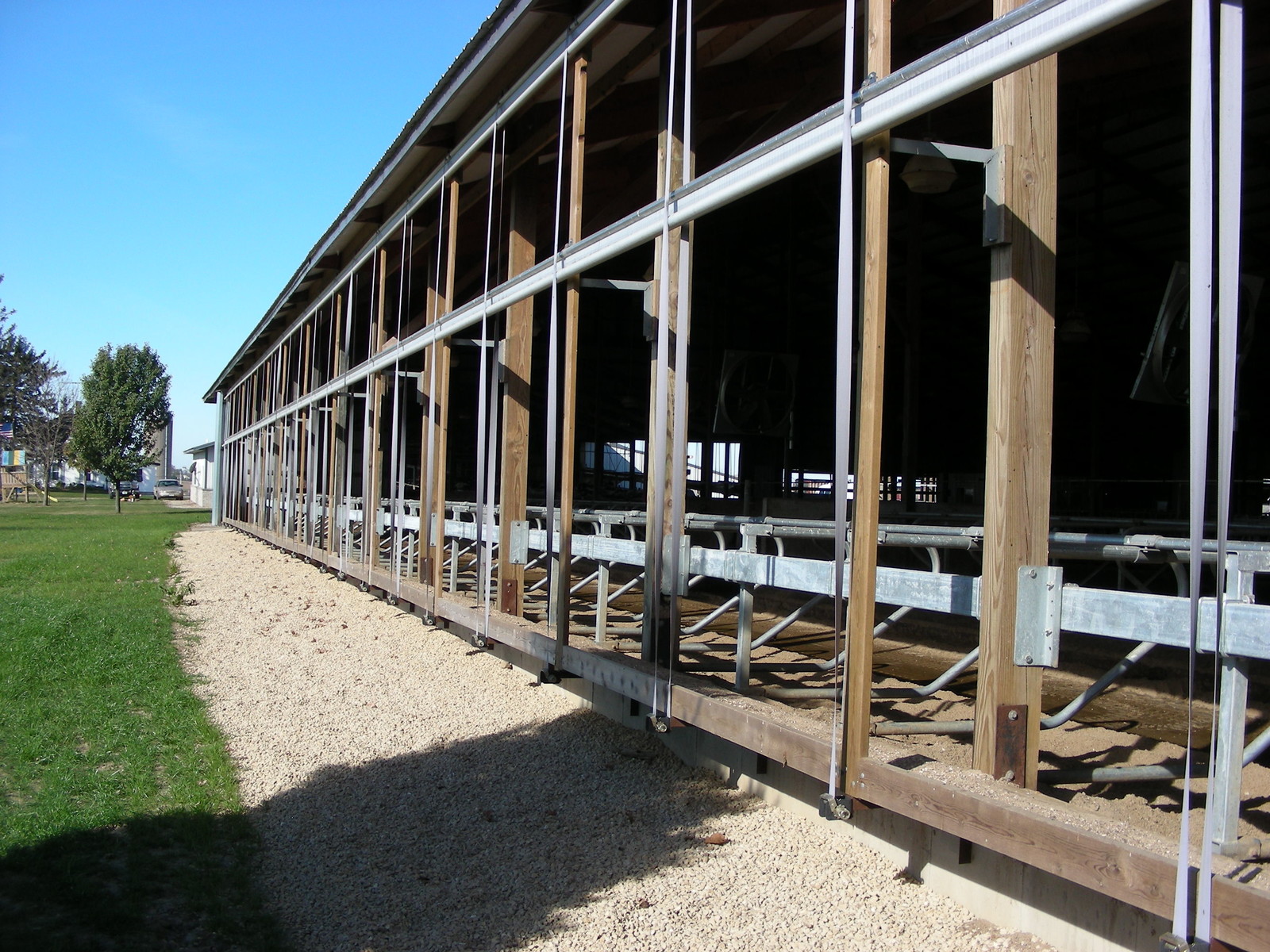

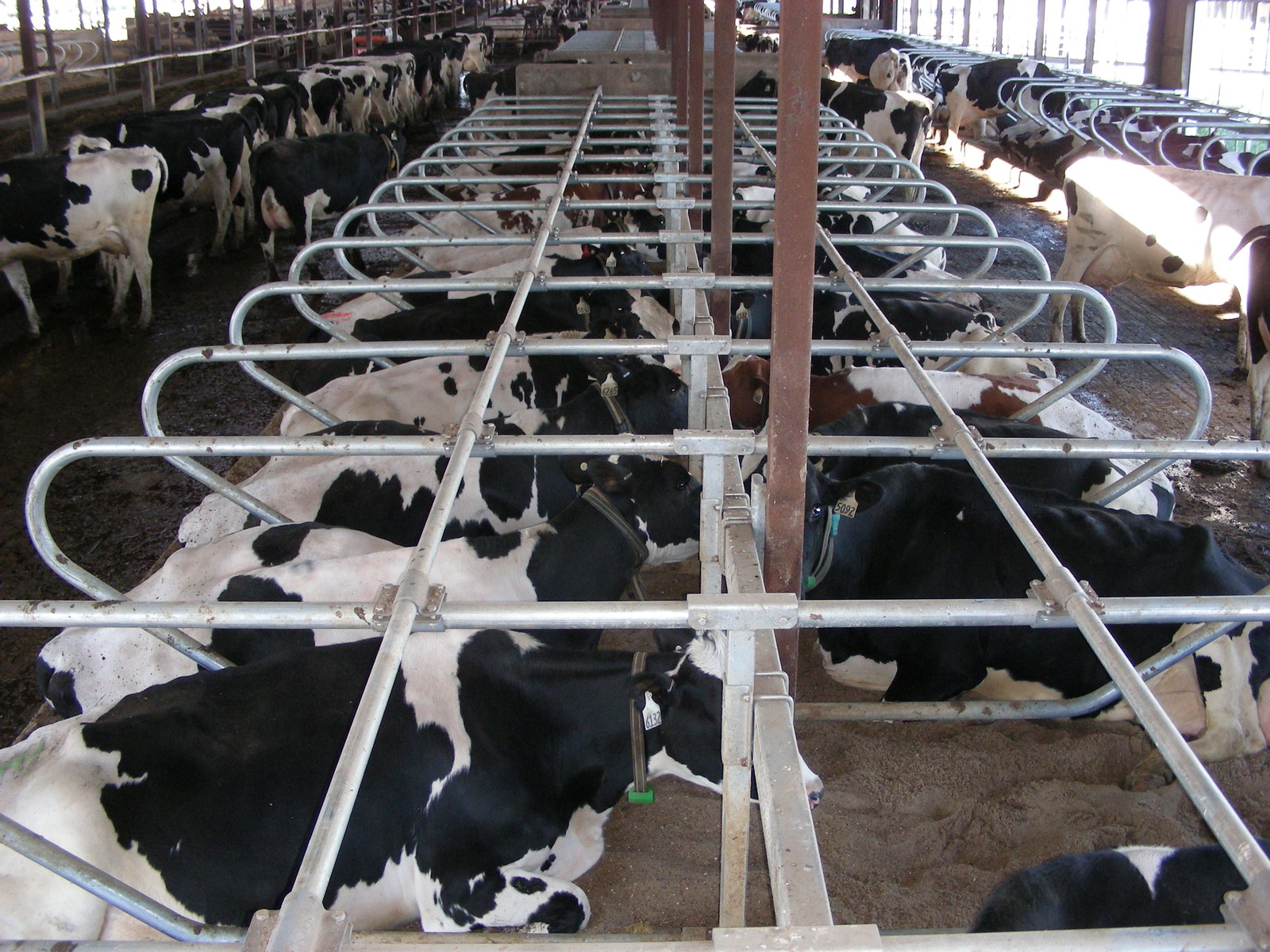

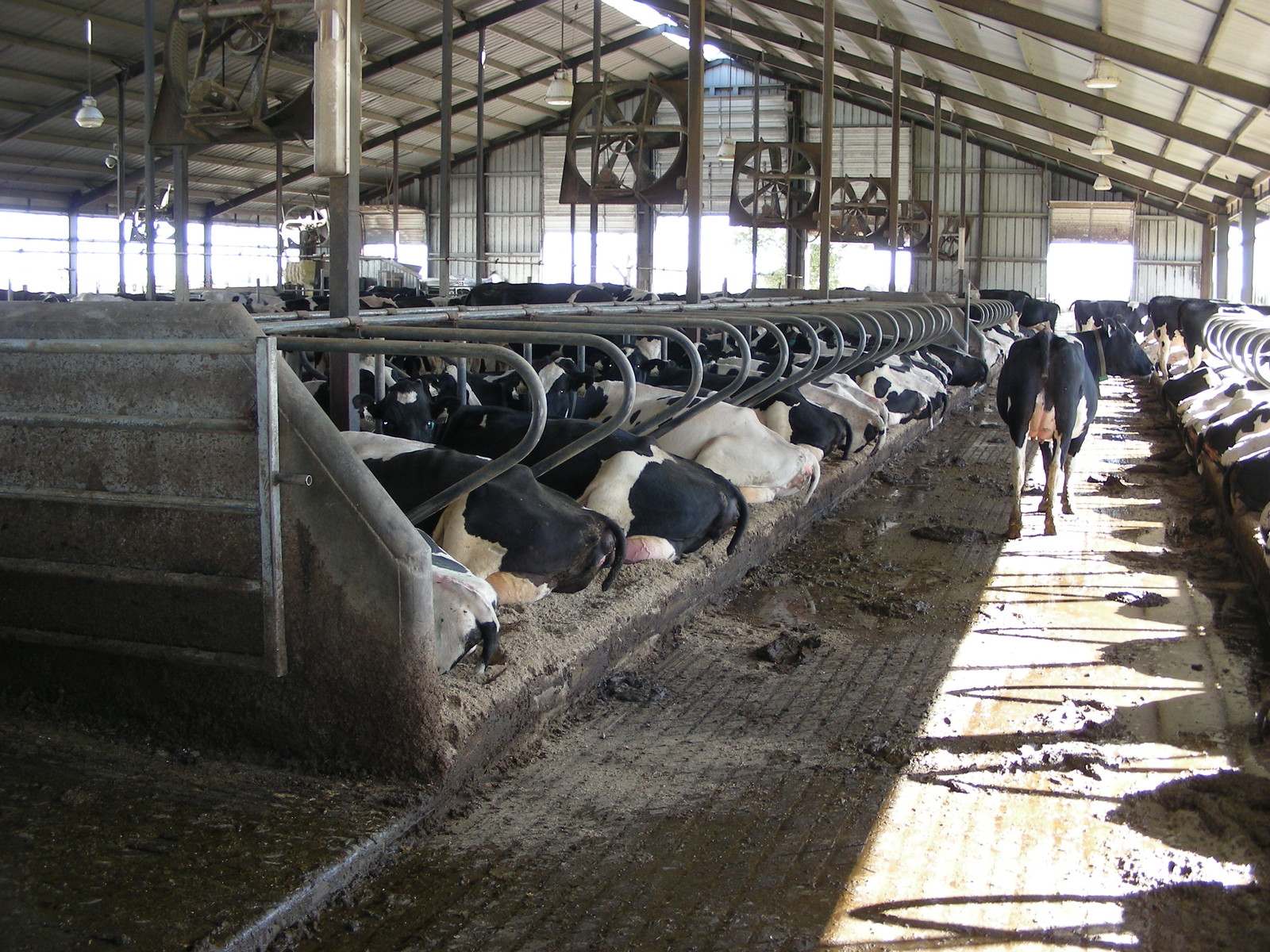

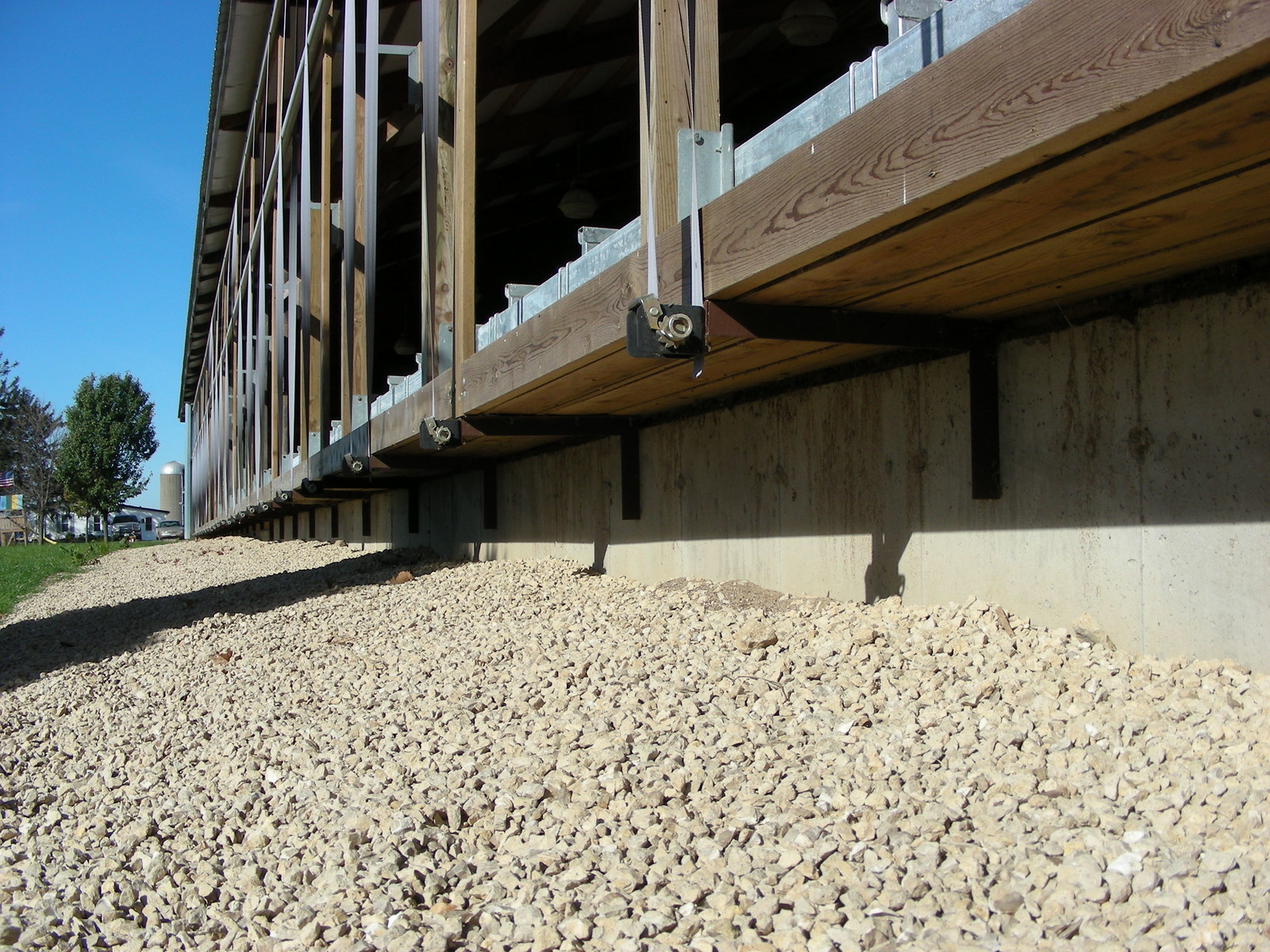

Two lactating cow barns with 3-row pens were remodeled from mattress stalls for deep sand bedding. An 18-inch lunge space addition was built on to the sidewalls of both barns. The head-to-head stall platforms in the first barn were extended 1’ into the feed alley, having removed the concrete mattress stall base and pouring a new curb for deep sand bedding, to accommodate larger, mature Holstein cows. Additionally, single beam-mounted freestall divider loops were installed at 50” on center for the mature cows. A 4×4” treated lumber bedding retainer was anchored to the existing stall platforms in the second barn, which now houses the smaller first lactation Holstein cows, with new divider loops installed at 48” on center.
LAYOUT / FLOORPLAN
PICTURES
VIDEOS
CONSTRUCTION
Demolition, Remodeling & Construction
Todd Wolf Construction LLC, 9051 Hwy 61, Lancaster, WI 53813
Ph: 608-723-2696
Freestalls
Fuller’s Milker Center, 423 Highway 61, Lancaster, WI 53813
Ph: 608-723-4634
fullers@chorus.net
Curtains
Meinholz Enterprises, 7485 Cty K, Middleton, WI 53562
Ph: 608-836-3255
meinholz.enterprises@hotmail.com
Sand Recycling Barn, Engineering & Design
Komro Sales &Service
W4666 Hwy 85, Durand, WI 54736
Ph: 715-672-4263
Sand Separator
McLanahan Corporation
200 Wall Street, Holidaysburg, PA 16648
Ph: 814-695-9807
rschrift@mclanahan.com
Electrical
D & D Total Construction LLC
5606 Kaden Drive, Lancaster, WI 53813
Ph: 608-732-2238
Electrical
Abing Electric
10490 County Road K, Lancaster, WI 53813
Ph: 608-723-6133
Excavation
Friederick Excavating
5741 Big Platte Road, Potosi, WI 53820
Ph: 608-763-2724
LENDER
Badgerland Financial
9185 Old Potosi Road, PO Box 311, Lancaster, WI 53813
Ph: 800-236-2030
